Szczegóły Produktu:
|
| Nazwa: | Certyfikat CE tunezja luzem wióry z drewna osiki sosnowej do maszyny do ściółki dla koni golarka do | Moc (w): | 11-55 kW |
|---|---|---|---|
| Waga: | 500kg | Napięcie: | 380v, dostosowany |
| Wymiar (L * W * H): | 1200*500*700mm | Pojemność: | 300-2000kg/h |
| Świadczona obsługa posprzedażna:: | Wsparcie online | Pakiet: | Drewniana skrzynka |

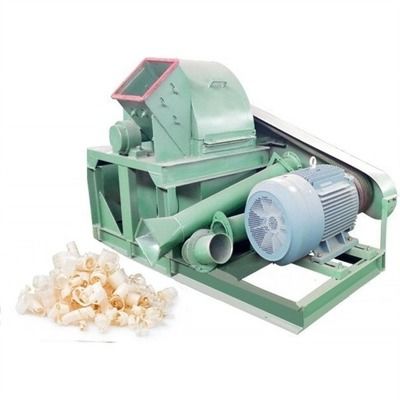

High Efficient Mini Machine To Make Wood Shaving Packaging Bedding Shaves Machine From Small Wood Horse Price India
Product Overview
The wood shaving machine is mainly used for mass production of thin shavings with uniform thickness. The finished product is the same as the shavings produced by the wood factory. The wood shaving machine adjusts the size of the finished shavings by adjusting the blade angle and the screen diameter. To adapt to various needs.
The machine can process logs, branches, planks and other woods within 30 cm into wood shavings, divided into multiple models, with an output of 500-2000kg/h. It can meet different needs.
| Type | Knives qty | Input size(mm) | Cutter dia(mm) | Blade size(mm) | Output(t/h) | Spindle speed(r/min) | Power(kw) | Size(mm) |
| 420 | 4 | 160*155 | 424 | 90*60*8 | 0.8-1.5 | 2600 | 7.5-11 | 1200*550*750 |
| 500 | 4 | 210*180 | 510 | 120*70*8 | 1.2-2.0 | 2400 | 18.5-22 | 1500*640*820 |
| 600 | 4 | 235*200 | 600 | 150*70*8 | 1.8-2.5 | 2200 | 22-30 | 1600*700*1050 |
| 700 | 4-6 | 230*200 | 600 | 180*70*8 | 2.5-3.5 | 2000 | 30-37 | 1850*830*1050 |
| 900 | 8 | 280*290 | 750 | 150*100*10 | 5.5-6.5 | 1500 | 55-75 | 2000*870*1500 |
| 1000 | 8 | 280*290 | 750 | 150*140*10 | 6-7 | 1500 | 75-6 | 1180*1100*940 |
| 1200 | 8 | 390*385 | 1000 | 190*140*12 | 7-8.5 | 1200 | 90-6 | 1430*1500*1200 |
| 1500 | 8 | 425*500 | 1160 | 230*140*14 | 9-11 | 1000 | 110-6 | 1650*1750*1400 |
| 1800 | 12 | 530*560 | 1300 | 150*140*14 | 11.5-14 | 950 | 132-6 | 2050*1850*1620 |
Features & Advantages
The raw material is fed into the inlet when the wood comes into contact with the cutting blade, it was cut with the high speed rotation of the cutter head. The cut wood chip is sent out of the high speed steam generated by the blade on the cutter blade in the cutting chamber.
1. Packing: Standard export wooden case. Shipping mark on the wooden case.
2. Delivery time: Within 15 workdays after getting the down payment.
3. Payment: 50%TT payment in advance, 50%TT pay the balance before delivery.
4. Warranty: One year.
Package
1.wood shaving machine italy will be packed in standard and quantities boxes ,the production will have a safe and complete journey from our factory to your place.
2.Packaging details standard export wooden case or in container.
Shipping
1.We will serve your shipping method about ocean transport ,air lift ,freights and so on.
2.The delivery time is usually 7-15 working days upon receipt of your payment.
